Sorts of Motors utilized in EV | Single, Twin, Three & 4 Motor Configuration in EV
How does Electrical Motor Works?
An electrical automobile motor works utilizing a bodily course of, that consists of utilizing a present to create a magnetic area on the mounted a part of the machine, known as the stator, whose displacement units in movement of a rotating half (known as the “rotor”).
Understanding how an electrical motor work is fairly easy, right here’s the simplified clarification of how a four-pole three-phase AC induction motor works in a automobile.
It begins with the battery within the automobile that’s linked to the motor. Electrical vitality is equipped to the stator by the automobile’s battery. The coils throughout the stator (that’s created from the conducting wire) are organized on reverse sides of the stator core and act as magnets in a manner.
Subsequently, when {the electrical} vitality from the automobile battery is equipped to the motor, the coils create rotating magnetic fields that pull the conducting rods on the skin of the rotor alongside behind it. The spinning rotor is what creates the mechanical vitality wanted to show the gears of the automobile, which, in flip, rotate the tires.

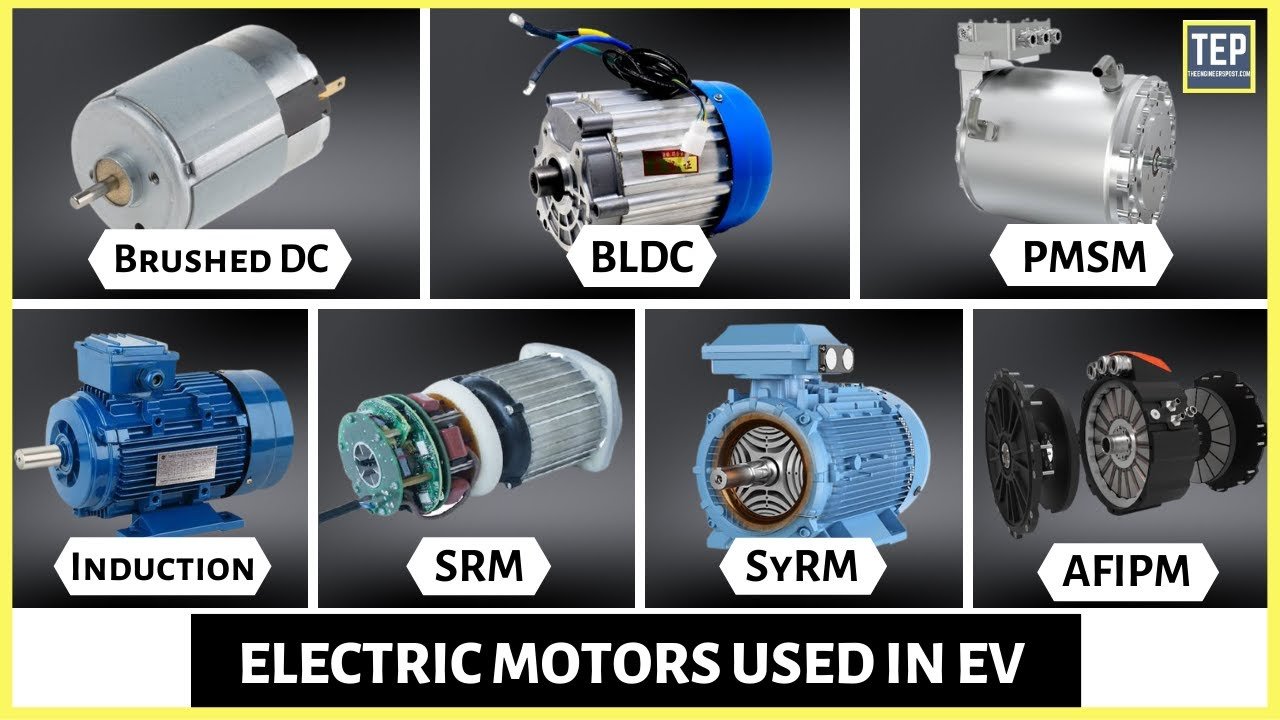

Varied varieties of Electrical Motors are
1. Brushed DC Motor
2. Brushless DC Motor
3. Everlasting Magnet Synchronous Motor
4. Induction Motors
5. Switched Reluctance Motors
6. Synchronous Reluctance Motor
7. Axial Flux Ironless Everlasting Magnet Motor
Electrical automobiles can be found in several drivetrain choices. The position of the electrical motor performs an important position within the energy supply and function of the automobile.
EVs can come in several configurations, corresponding to a single motor, twin motor, three motor, or a separate motor for every wheel.
Sorts of Powertrains in EV:
In line with the variety of motors utilized in automobile and their configuration, present powertrain EVs may be categorized into two sorts together with the centralized single motor-driven powertrain and the distributed multi-motor pushed powertrain.
The centralized motor single motor one speed-driven powertrain is the most typical construction in trendy EV.
Some EVs targeted on the distributed multi-motor is pushed powertrains. The multi-motor pushed powertrain is principally categorized into three classes.
1. Twin motor powertrain
2. Triple motor powertrain and
3. 4 motor powertrain
—- Time Stamp —
00:00 – Intro
00:49 – How does Electrical Motor Works?
01:54 – Sorts of Electrical Motors
02:27 – Brushed DC Motor
03:19 – Brushless DC Motor
04:09 – Everlasting Magnet Synchronous Motor
05:04 – Induction Motors
06:00 – Switched Reluctance Motors
06:40 – Synchronous Reluctance Motor
07:15 – Axial Flux Ironless Everlasting Magnet Motor
07:54 – Totally different Motor Configurations utilized in EVs
08:30 – Single Motor Configuration
10:09 – Twin Motor Configuration
12:52 – Triple Motor Configuration
14:04 – 4 Motor Configuration
15:14 – Wrap up
