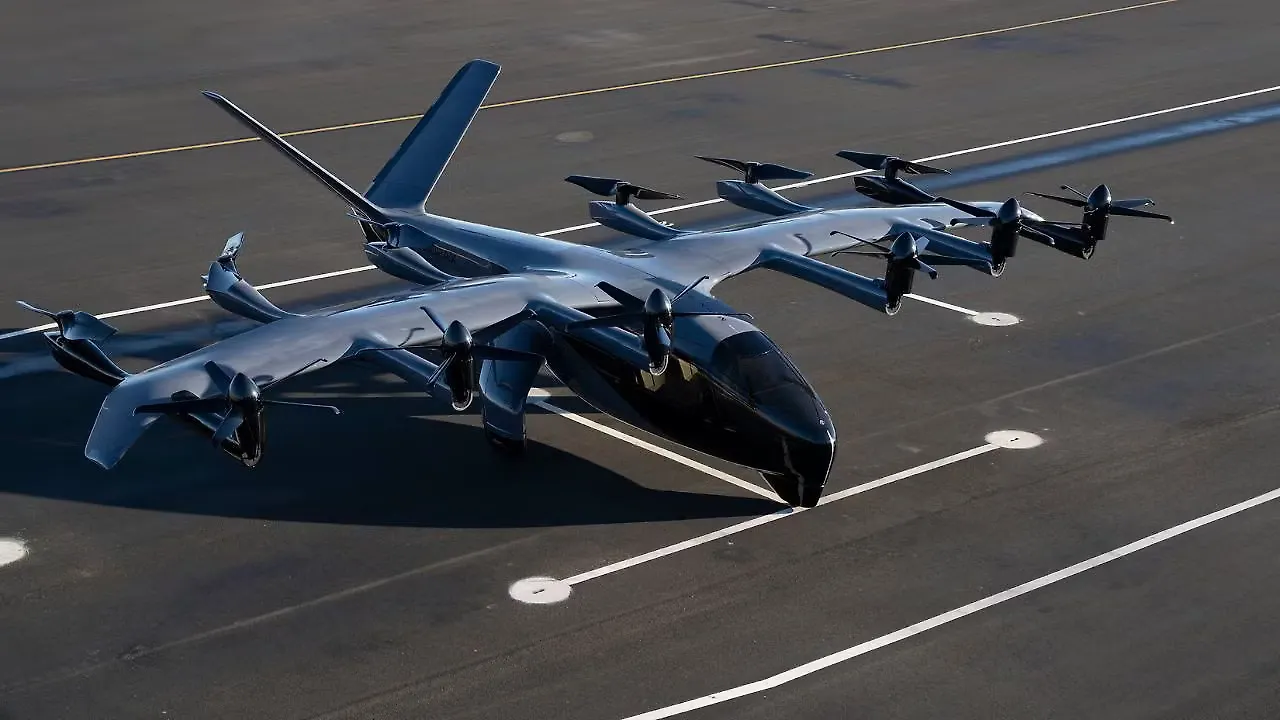

Archer Aviation Inc. (Archer), an early chief in electrical vertical take-off and touchdown (eVTOL) plane based mostly in Santa Clara, USA, not too long ago unveiled the manufacturing model of its eVTOL referred to as ‘Midnight’.
An evolution of Archer’s ‘Maker’ eVTOL plane demonstrator, the Midnight has the identical configuration however is barely bigger to help its 500kg payload functionality and carry a pilot with 4 passengers. Archer had initially deliberate to unveil the manufacturing of eVTOL in 2023 however pulled the launch ahead as a consequence of its confidence within the programme.
The brand new Midnight eVTOL is being optimised for back-to-back 32 km journeys, with a charging time of roughly 10 minutes. Archer is working to certify Midnight with the US Federal Aviation Administration (FAA) in late 2024 and can use it as a part of its City Air Mobility (UAM) community that it plans to launch in 2025.
Archer’s first point-to-point route can be operated by the US provider United between Downtown Manhattan Heliport, one of many world’s most superior and well-known heliports, and New York Liberty Worldwide Airport, one among United’s largest hubs. Archer has already acquired a $10 million pre-delivery cost from United, representing a deposit on the primary 100 plane it is going to obtain as a part of a 200 plane order.
Adam Goldstein, Founder and CEO, Archer, stated, “From day one Archer’s technique has all the time been about discovering essentially the most environment friendly path to commercialising eVTOL plane.We consider our technique and workforce’s capacity to execute on it has allowed us to ascertain our management place available in the market, and is why we’re assured we would be the first firm to certify an eVTOL plane within the US with the FAA.”
Mark Mesler, CFO, Archer, stated the corporate was persevering with to push in direction of commercialisation, with the overwhelming majority of sources centered on finishing the event and certification of Midnight, constructing out its manufacturing and provide chain capabilities and hardening the corporate’s go-to-market plans.
The corporate additionally has a extremely important strategic partnership with Stellantis, one of many largest international auto OEMs, with manufacturers together with Jeep, Ram and Maserati. Stellantis has performed a crucial function in Archer’s manufacturing journey because it has a core competency in high-volume manufacturing, constructing hundreds of thousands of automobiles yearly.
“We have now been working with Stellantis since 2019 throughout totally different engineering initiatives, and we proceed to leverage their deep manufacturing and design experience. Importantly, Stellantis is totally dedicated to EV and are investing tens of billions to advance electrification throughout its portfolio. We stay up for maturing our relationship as we transition into manufacturing,” Goldstein stated.
Racing Forward
Archer accomplished Midnight’s Preliminary Design Evaluation (PDR) masking all elements of the plane’s specs and manufacturing necessities in August. Finishing PDR allowed it to find out that the design is possible for Kind Certification and commercialisation. It has been stated that the Maker eVTOL demonstrator’s flight testing programme is on schedule to finish a full transition flight within the coming weeks. On November 2, the Maker eVTOL flew its first wing-borne flight above the stall pace producing raise from the wing. Archer has joined a choose membership of corporations which have completed such a flight with a vectored thrust eVTOL configuration. The stall pace is the pace at which an plane is unable to take care of flight.
The eVTOL producer validated its proprietary twelve-tilt-six configuration and key enabling applied sciences on the Maker eVTOL demonstrator. The Maker eVTOL made its first hover flight a 12 months in the past, and the flight take a look at programme has generated invaluable knowledge since then, which Archer has leveraged in growing and certifying the brand new Midnight eVTOL.
The corporate has been specializing in in-house growth just for key enabling applied sciences which it can not supply from the prevailing aerospace provide base. Because of this, it has focussed its inside growth efforts on key technical enablers like batteries, motors, and flight management software program. This method has allowed it to depend on companions to produce elements already used on licensed plane at present. This has allowed the corporate to dramatically scale back its certification dangers, growth timelines, and prices.
The corporate had introduced three targets for 2022: making a transition flight for the Maker, FAA acceptance of compliance and deciding on a producing website. The primary Maker transition flight will make a serious milestone for the programme. Transition is the part of flight between hover and cruise, the place the plane transitions from the raise generated by the propellers to the raise generated by the wing, referred to as wing-borne flight. Throughout a full transition flight, the lean propellers can be locked within the cruise place. Archer has submitted its technique of compliance to the FAA, which can be accredited after assessment by the FAA.
Archer’s eVTOL manufacturing facility can be situated on a 96-acre website in Covington, Georgia, adjoining to the Covington Municipal Airport. The corporate plans to speculate $118 million over the following ten years and can obtain an incentive bundle totalling 33% of its capital funding dedication, which incorporates land conveyance, tax incentives and a Georgia REBA grant. Archer will assemble a 350,000-sqft facility able to producing as much as 650 plane yearly. The ability is predicted to be accomplished within the first half of 2024, with preliminary manufacturing anticipated to start within the 12 months’s second half. The ability may be expanded by a further 550,000 sqft, which may help the manufacturing of as much as 2,300 eVTOLs per 12 months.
Viable Mannequin
Throughout Archer’s Q322 Earnings Name in early November, Mesler supplied an perception into how payload would impression UAM unit-level economics of its UAM enterprise mannequin. He gave the instance of a pattern UAM route, which might cowl a distance of 24 km and help 25 journeys per plane per day. “From a top-line standpoint, assuming indicative pricing much like present ridesharing companies, income can be $90 per seat per journey. That’s roughly $6 per seat mile,” he stated. The income would scale because the plane capability is crammed, rising from $90 for one seat to $360 for 4 seats.
At 25 journeys per plane per day, working three hundred and sixty five days per 12 months, it could generate roughly $3.2 million of income per 12 months, Mesler outlined. He stated this was 50% extra income potential or roughly $1.6 million extra potential income per plane, than that which could possibly be achieved with a smaller payload two-seat plane.
From a value standpoint, Mesler stated the direct working prices between two-passenger or four-passenger capability are directionally about the identical as a result of their weight and ancillary mounted prices are very related. “Provided that, merely put, we consider payload unlocks the potential for larger profitability,” he stated. Because of this, he stated, that given the density of those routes, Archer’s modelling confirms that top load components have been anticipated on this explicit route and the plane would seemingly function at or close to capability.
City Design
The Midnight eVTOL can have a design cruise altitude of roughly 2,000 ft. With eVTOLs being designed for operations in city areas, Archer says that Midnight’s noise stage on the floor is predicted to measure round 45 A-weighted decibels (dBA). This may make it almost 1,000 instances quieter than a helicopter as its plane has 12 small propellers in comparison with one giant rotor on a helicopter. Because of this, they spin at considerably decrease tip speeds, leading to a lot decrease noise ranges.
Archer has invested closely in guaranteeing that the Midnight eVTOL options excessive redundancy and simplified propulsion techniques to make it a considerably safer plane than a helicopter.
The Midnight VTOL can be designed to not have any crucial factors of failure; the plane can nonetheless safely full its flight if any element fails. An eVTOL’s electrical motors even have considerably fewer shifting elements than gasoline turbine or piston engines, permitting them to function with much less upkeep and decrease general threat.

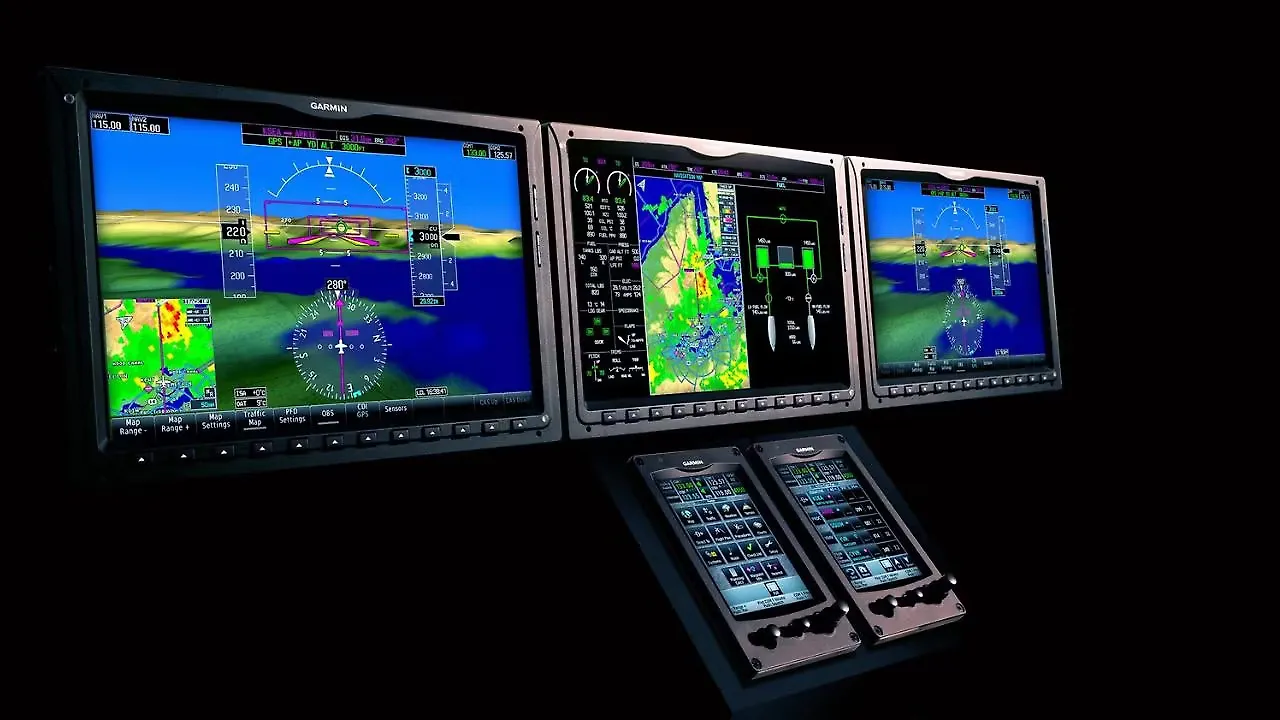

The corporate has already chosen greater than 64% of the suppliers for Midnight’s invoice of supplies. Key suppliers embrace Garmin, which is able to provide its G3000 built-in flight deck, providing the configuration wanted to carry the Midnight eVTOL plane to market. The massive format shows and intuitive controls will present pilots with the situational consciousness wanted to function Midnight.
Taiwan-based E-One Moli Power Corp. (Molicel), an industry-leading provider of lithium-ion battery cells, will provide the plane. Molicel introduced final 12 months that it plans to ascertain its first Gigafactory in Taiwan, which is scheduled to ramp up manufacturing in 2023. The ability can have the capability to provide 1.8 gigawatt-hours (GWh) of battery capability yearly.
As an all-electric VTOL plane, Midnight can have zero working emissions and Archer’s design and engineering groups have labored arduous to combine sustainable supplies into this plane, resembling seats that are made out of “flax” fibre, a pure plant which requires little or no irrigation and is very absorbent of CO2. The seat material is made out of recycled contents like plastic bottles.
